Furuno Felcom 16 INM-C – Hệ thống cảnh báo an ninh tàu biển

Furuno FELCOM 16 INM-C is a maritime satellite communication device using the Inmarsat Mini-C platform, widely used in the when used with related equipment.. This system is designed to send security alerts when the ship is at risk of attack by pirates, terrorists, or other security threats. When activated, the alert is transmitted to pre-set addresses ashore without any audible alarm or public display on the ship, thus preventing those on board from knowing that an alert has been sent.

With its compact design, FELCOM 16 ilde{} SSAS facility can be conveniently installed in the bridge area. Activating the alert is simple: lift the protective cover and press the alert button, requiring no complex configuration during an emergency.

Discreet SSAS ship security alert system

The main function of Furuno FELCOM 16 INM-C is to transmit security alerts when the ship is under threat. The system can notify the flag administration and ship owner/company security officer through a parallel multi-address transmission mechanism.
The information sent includes the ship's current position and vessel identification information. The vessel’s position is obtained from the built-in GPS receiver, then periodically sent so that the regulatory authority and the shipowner can monitor the vessel’s status in hazardous situations.

FELCOM 16 has GPS receiver incorporated. This GPS unit helps the system automatically obtain the vessel's coordinates to include in alert messages or position reports. This is a crucial component in the SSAS system, as security alerts need to be accompanied by location information so that shore-based authorities can determine the vessel's status and the area where it is at risk.
Besides emergency alerts, the data reporting function allows the system to report the vessel's position at predefined intervals. This helps the shipowner or management authority monitor the vessel's itinerary and status in situations requiring continuous surveillance.

Supports polling for remote vessel tracking

A key advantage of theFuruno FELCOM 16 INM-C is itspolling function. This function allows the shore side to send inquiry requests to track the vessel, even in cases where the vessel has lost normal communication due to an incident or a security situation.
For vessels operating on international routes, in areas with piracy risks, or in offshore waters, polling is a useful feature for maintaining the ability to remotely monitor the vessel's position and status.

Optional backup battery for continuous operation up to 5 days

FURUNO FELCOM 16 can use backup battery – backup battery option to maintain operation and continuous data transmission for up to 5 days. This feature is crucial in situations where the vessel loses main power or when the system needs to continue transmitting its position for an extended period after a security alert has been triggered.
When listing for sale or quoting, it is advisable to clearly state whether the package includes a backup battery, as this is often an optional accessory or dependent on the actual installation configuration.

Using the Inmarsat Mini-C system

According to the FURUNO brochure, FELCOM 16 is anClass 2 Inmarsat MINI-C terminal, which supports EGC for shore-to-ship communication via a shared receiver. The system supports Inmarsat Mini-C services such as directly affects the satellite receiving/transmitting capability of the entire system., store-and-forward two-way messaging, telex, PSTN fax, Internet email, X.25, X.400, closed network DNID, special access code, polling, and data reporting.
Leveraging the Inmarsat Mini-C platform, the FELCOM 16 is suitable for secure data transmission, security alerts, position reporting, and maritime communication applications within Inmarsat satellite coverage.

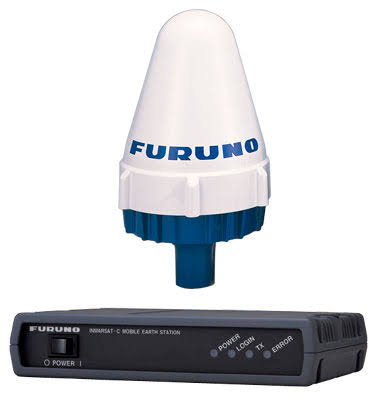

Configuration includes Antenna Unit IC-116 and Communication Unit IC-216

The basic configuration of the FELCOM 16 consists of Antenna Unit IC-116 and and . The antenna has a small size and weighs approximately 1.4 kg, while the Communication Unit weighs approximately 1.2 kg, making installation on board more convenient.
In the SSAS configuration, the system can additionally use System junction box and Alarm Unit IC-306. FURUNO documentation states that a maximum of 3 SSAS Alert Unit can be connected, allowing for the placement of alert buttons in suitable locations on board.

Complies with IMO and IEC standards for SSAS

According to product information, the FELCOM 16 / SSAS facility complies with the requirements related to ship security alert systems such as IMO MSC.136(76), MSC/Circ.1072, and also meets IEC 60945 and IEC 61162.
Note: in the source you provided and the Marinsat page it says MSC.144(77), while the FURUNO SSAS brochure says MSC.147(77). When posting the product on the website, it is safe to say “complies with relevant IMO/IEC requirements for SSAS” or cross-reference according to the certificate/documents accompanying the actual equipment.

Outstanding features of Furuno FELCOM 16 INM-C

• DeviceInmarsat Mini-C Mobile Earth Station is for ships.
• Suitable forwhen used with related equipment..
• systems.
• Sends discreet security alerts, without generating audible/visual alarms on board.
• Alerts are sent to the flag state administration and/or ship owner according to multi-address configuration.
• Built-in GPS for transmitting vessel position.
• Supports periodic position reporting.
• Supports polling function for remote vessel tracking.
• Optional battery backup maintains continuous data transmission for up to 5 days.
• Configuration includes Antenna Unit IC-116 and Communication Unit IC-216.
• Can connect SSAS Alert Unit IC-307; up to 3 SSAS alert buttons depending on configuration.
• Supports EGC SafetyNET/FleetNET, telex, fax, email, polling and data reporting.
• Suitable for commercial vessels, cargo ships, service vessels, international vessels, and vessels requiring a security alert system as per SOLAS/ISPS requirements.

System configuration and related accessories

Applications of Furuno FELCOM 16 INM-C

Furuno FELCOM 16 INM-C phù hợp cho các ứng dụng:

• Ship Security Alert Systemsystem.
• Send alerts when the ship is subject to piracy, terrorism or security threats.
• Report ship's position periodically to shore.
• Remote ship tracking with polling function.
• Transmit Inmarsat Mini-C data.
• Receive EGC SafetyNET FleetNET.
• Support telex, fax, email, data reporting communication.
• Equip commercial vessels, cargo ships, passenger ships, service vessels, and vessels operating internationally.
• Replace, repair, or maintain older FELCOM 16/SSAS systems.

FURUNO FELCOM 16 is the suitable solution for vessels requiring a compact, reliable Inmarsat Mini-C system with SSAS capability. The device has built-in GPS, supports position reporting, polling, multi-address data transmission, and can operate with an optional backup battery for extended periods.
For shipowners, ship management companies, and maritime electronic service providers, the FELCOM 16 is an appropriate choice for maintaining security alert systems, replacing old equipment, or maintaining existing Inmarsat Mini-C systems on board.

Notes when ordering Furuno FELCOM 16 INM-C

Before ordering or replacing the FELCOM 16 INM-C, please check the actual configuration:

• orAntenna Unit IC-116, and or a complete set?
• Is it supplied withSystem junction box configuration required.
• Does it include Alarm Unit IC-306 configuration required.
• CU5000AC/DC Power Supply Unit PR-240 configuration required.
• Is backup battery to maintain operation for up to 5 days?
• Is the device for SSAS, GMDSS or normal data transmission.
• Do you need to reconfigure the alert receiving address, flag administration, ship owner/company security officer?
• MMSI, ship identification data, GPS configuration and position reporting configuration need to be checked.
• Equipment status if it is stock, replacement, or used.

Nếu bạn có thắc mắc vui lòng liên hệ với Hotline 0386.001.001 or0974.051.444 để được giải đáp chi tiết.

FAQ

What is the Furuno FELCOM 16 INM-C device?

The Furuno FELCOM 16 INM-C is an Inmarsat Mini-C Mobile Earth Station device, commonly used in the when used with related equipment. system to send ship security alerts and position reports ashore.

Furuno Does the FELCOM 16 have an internal GPS?

Yes. Both FURUNO and Marinsat documentation confirm it.

Furuno FELCOM 16 has a built-in GPS receiver, used to obtain the vessel's position for reporting and security alert purposes.

When SSAS is activated, does the system have an onboard alarm?

No. The system is designed to send security alerts to shore without emitting an audible or visual alarm onboard, helping to avoid alerting others on the vessel that an alert has been sent.

Furuno Can FELCOM 16 send alerts to multiple addresses?

Yes. The multi-addressed transmission function allows parallel reporting to the flag administration and the shipowner or company security personnel.

Furuno Does FELCOM 16 have a backup battery?

A backup battery is optional. When equipped, the system can maintain continuous data transmission for up to 5 days.

Furuno What are the main components of FELCOM 16?

According to the brochure, FELCOM 16 consists of the Antenna Unit IC-116 and and ; in an SSAS configuration, the Junction Box IC-315 and SSAS Alert Unit IC-307 may also be used.
