Introduction to LMR 400 coaxial cable

Structure of LMR 400 cable

• Conductor: The cable core is made of pure copper or silver-plated copper, ensuring good conductivity and minimizing signal loss.
• Dielectric Layer: Uses foam polyethylene (Foam PE), which has excellent dielectric properties and minimizes signal loss at high frequencies.
• Shielding Layer: Consists of an aluminum tape layer and a copper braid layer, which helps protect the signal from electromagnetic interference (EMI) and unwanted radio frequency (RF) noise.
• Outer Jacket: Made from PVC or PE material, which is resistant to weather, UV rays, and other environmental factors.

Key Specifications

• Outer Diameter: 10.3 mm.
• Impedance: 50 Ohm.
• Maximum Operating Frequency: Up to 6 GHz.
• Low Signal Loss: Approximately 0.22 dB/m at 2.4 GHz.

TNC Male/Male Connector

Characteristics of TNC Connector

• Threaded design: The TNC connector features a secure threaded mechanism, ensuring a stable connection and minimizing signal loss due to vibration.
• High-quality material: Made from nickel-plated or silver-plated copper alloy, this connector is corrosion-resistant and performs well in harsh environments.
• High compatibility: The TNC Male/Male connector is suitable for a wide range of RF devices, from transmitters and antennas to wireless signal transceivers.

Benefits of TNC Male/Male Connector

• Ensures a secure and stable connection.
• Performs effectively in high-frequency applications.
• Easy to install and remove, saving time and effort.

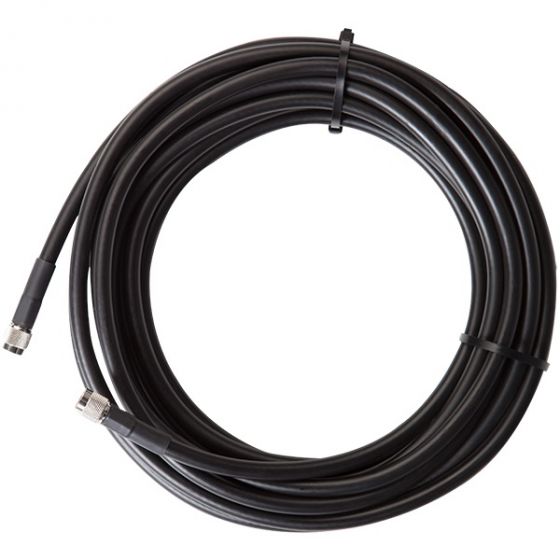

Applications of LMR 400 Coaxial Cable with TNC Male/Male Connector - 30 Feet

• The 30-foot (approximately 9.1 meters) length of LMR 400 cable offers flexibility in various practical applications, including:
• Wireless and Wi-Fi Networks: LMR 400 cable is used to connect devices such as Wi-Fi antennas, transmitters, or receivers, ensuring signal integrity over long distances.
• Radio Communication Systems: In radio communication systems like two-way radios, GPS devices, or radar, LMR 400 cable helps minimize signal interference and maintain a stable connection even in harsh environments.
• Surveillance and Security Systems: This cable is commonly used in surveillance camera systems, ensuring clear and interference-free images.
• Industrial and Military Applications: Thanks to its durable design and ability to withstand harsh conditions, this product is also used in industrial production systems, automated sensors, and military communication equipment.

Key Product Advantages

High Transmission Performance

• Minimizes signal loss to ensure high-quality signal transmission.
• Performs well in applications requiring high frequencies up to 6 GHz.

Engineered to withstand harsh outdoor conditions, featuring high durability, dustproof, waterproof, and good heat resistance.

• Robust outer jacket provides excellent resistance to harsh weather conditions.
• Precision-machined TNC connectors ensure long lifespan and corrosion resistance.

Easy Installation

• The 30-foot length is suitable for long-distance connections without significant signal loss.
• The TNC Male/Male connector design allows for quick and convenient installation and removal.

Flexible Compatibility

• The LMR 400 cable with TNC Male/Male connectors can effectively work with various RF devices and wireless network systems.

Notes on Use and Maintenance

• Avoid excessive bendingBending the cable at sharp angles can damage the insulation and increase signal loss.
• Correct installation: Ensure the TNC connector is tightened, avoiding looseness.
• Proper storage environment: Avoid exposing the cable to high humidity or prolonged direct sunlight.
• Regular cleaning: Clean the connectors to remove dirt and ensure a stable connection.
