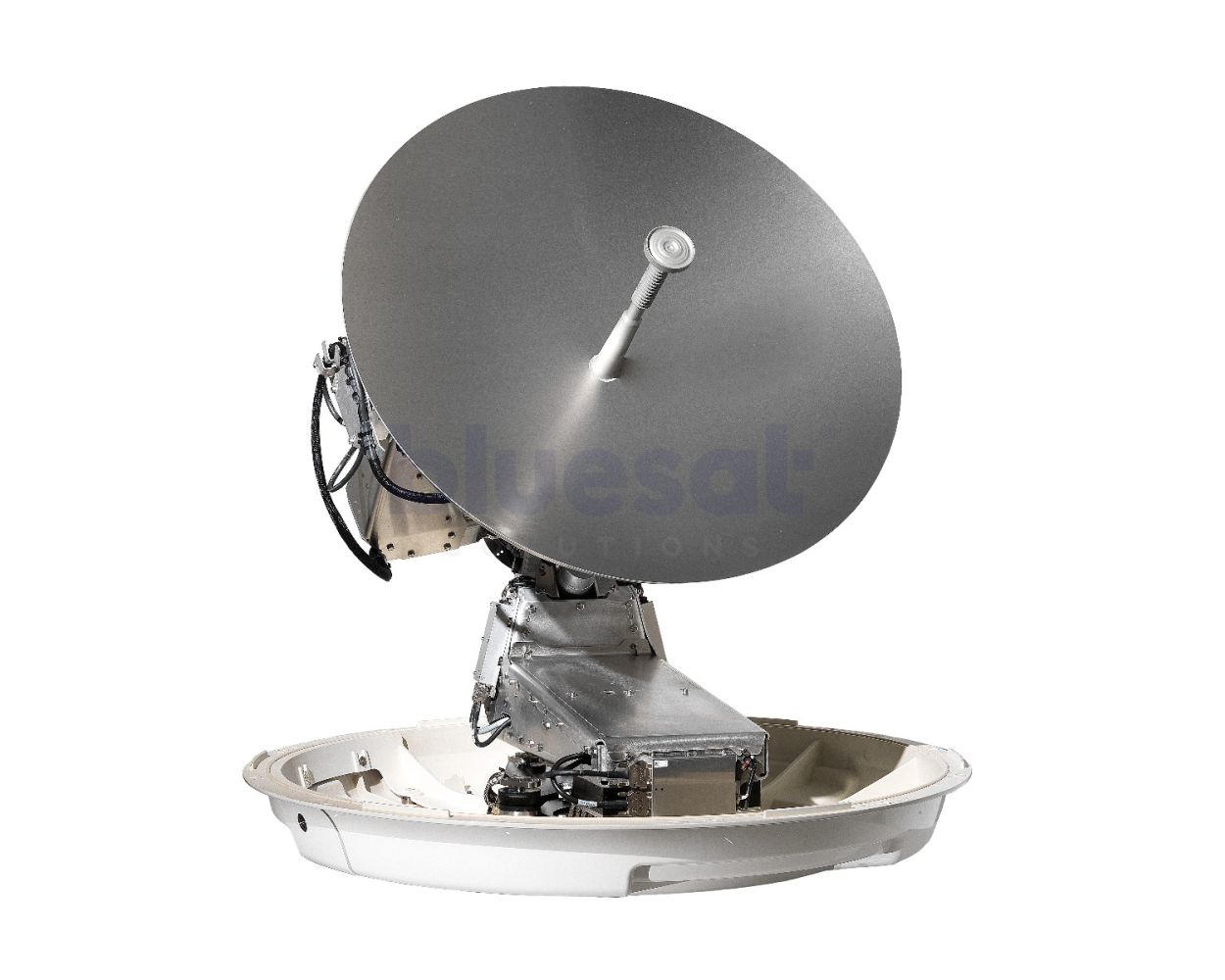

SAILOR 800 VSAT Ku-band Satellite Antenna is a 3-axis stabilized Ku-band maritime VSAT antenna system with a 83 cm reflector dish diameter, providing superior RF performanceG/T > 18 dB/K, equivalent to or better than typical 1m antennas. This is the ideal solution for vessels requiring a compact size without compromising on performance.
Suitable for Cruise, Energy, Merchant, and Ferry.
- Peak Performance:
- G/T > 18 dB/K, suitable for commercial vessels, fishing boats, yachts, and inland waterways vessels.
- Independently verified, delivering the best performance in the 80cm antenna segment.
- Easy Installation:
- 20% more compact than 1m antennas, allowing for easier installation on a wider range of vessels.
- Pre-configured and factory-tested, reducing installation costs and time.
- High Reliability:
- Utilizes proven technology from SAILOR 900 VSAT, ensuring stable performance and quality.
- Automatic satellite and modem connection control for uninterrupted connectivity.
- Dual Antenna Integration:
- Enables operation of 2 antenna systems on a single modem, ensuring continuous connection even with obstructions.
Technical Specifications
- Antenna Diameter: 83 cm
- BUC Power: 6W
- Stabilization System: 3-axis (Azimuth, Elevation, Cross Level)
- RF Performance: G/T > 18 dB/K
- Supported Frequency Bands: Ku-Band
- Wave Capability: Roll ± 25°, Pitch ± 15°
- Power Supply: AC
- Included Accessories:
- 83 cm Reflector, 6W BUC, 2 Multiband LNBs, OMT/Diplexer
- Power cable, Ethernet cable, 75 Ohm Tx/Rx cables
Usage Benefits
- High Performance: Meets the stable communication needs for all types of vessels, from small to large ships.
- Reasonable Cost:Minimize installation time and cost thanks to pre-configuration.
- Continuous Connection:Supports uninterrupted connectivity, suitable for complex operating conditions.
